Brand Name : XINBEI
Model Number : XB-PE
Certification : CE ISO9001 SGS
Place of Origin : China
MOQ : 1 set
Price : Negotiation
Supply Ability : 10 sets per month
Delivery Time : 45 days
Packaging Details : PE film wraping
name : PE Pipe extrusion line
Plastic Process : PE
warranty : One year
range of diameter : 16-1000mm
screw desgin : single
control : PLC
PE Processing Line Machinery / PE Pipe Extrusion Line / Polyethylene Tube Extrusion Line
Process:
material Hopper Dryer and Auto charger → PE pipe extruder → marking line extruder → mould → calibrator → vacuum calibration tank → spray cooling water tank → printer → haul-off → cutter → pipe discharging rack
Main Technical Data:
| Model | Pipe ranger (mm) | Extruder | Max.output(kg/h) | Max.hauling speed(m/min.) | Extruder powder (KW) |
| PEG-63 | 20-63 | SJ65/33 | 150 | 12 | 55 |
| PEG-110 | 20-110 | SJ65/33 | 180 | 10 | 75 |
| PEG-160 | 75-160 | SJ75/33 | 350 | 8 | 110 |
| PEG-250 | 90-250 | SJ75/33 | 350 | 5 | 110 |
| PEG-315 | 110-315 | SJ90/33 | 450 | 3 | 160 |
| PEG-450 | 160-450 | SJ90/33 | 450 | 2 | 160 |
| PEG-630 | 315-630 | SJ120/33 | 850 | 1.6 | 280 |
Application:
PE:
• under pressure pipe
- water transportation and distribution
- gas distribution system
• discharge pipe
• protection lines for electric cable
- pipes with low friction inner sheathing
- 2 and 3-outlet pipe


|
|

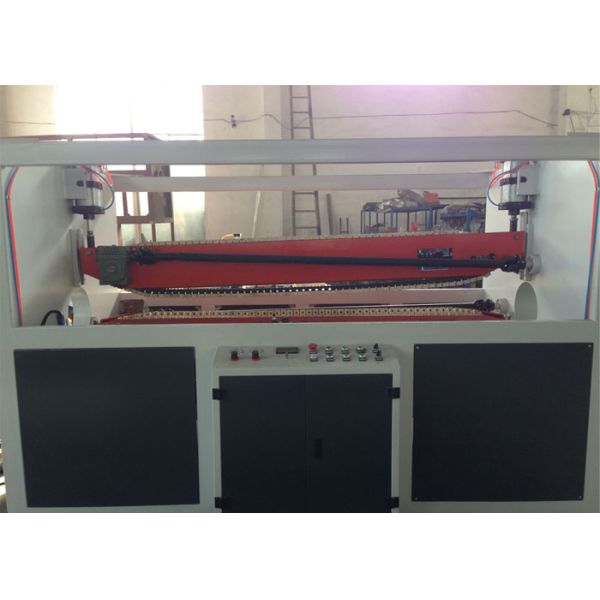

Customized Pe Extruder Pipe Production Machine , Single Screw Plastic Tube Making Machine Images |
