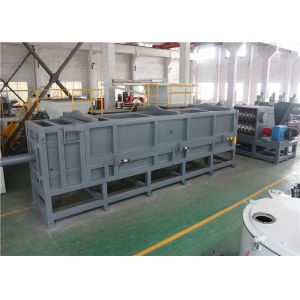

Synchronous rotating two / four shaft PVC pipe double / four shaft Horizontal Shredder
Big pipe shredder/PE pipe shredder/Horizontal Pipe Shredder is almost always used with a screen, which retains the material in the cutting chamber to reduce the material even further. The standard cut on a single shaft shredder is 25-40mm.
The horizontal pipe shredder utilizes a hydraulic ram which feeds plastic pipe horizontally onto a single shaft shredder rotor. It is able to process very long pipes, and can take a very wide diameter pipe or multiple smaller pipes. We can offer a variety of rotor configurations to suit different applications.
Usage:
1. Large diameter PE,PVC pipe
2. Big size PP,PC board
Features:
1. Horizontal shredder is used for shredding large size materials, size could be 250mm-1600mm in diameter while length could be 3m-9m.
2. Adopt self-designed and advanced double shaft driving system, two shafts keep synchronous rotating. Shredding capacity and efficiency improve a great deal compared with singe shaft shredder.
3. Bulit-in hydraulic system keep pushing material toward shafts, in accordance with chamber balance system and high accuracy system, enable stable shredding and reduce vibration and noise.
4. Electrical system, based on easy operation principle, is equipped with one button start, emergency stop, overload protection and other functions to make sure machine get stable working and efficiency.
| Model | XB-W600 | XB-W800 | XB-W1000 | XB-W1200 | XB-W1600 |
| Shaft diameter(mm) | 350*2 | 450*2 | 550*2 | 650*2 | 430*4 |
| Moving knife qty.(pcs) | 63 | 108 | 132 | 195 | 400 |
| Max. Capacity(kg/h) | 800 | 1000 | 1200 | 1500 | 1800 |
| Motor power(kw) | 30+37 | 37+45 | 45+55 | 55+75 | 75+90 |
| Chamber size(L*W mm) | 6200*670 | 6200*870 | 6200*1100 | 6200*1300 | 6200*1700 |
| Host weight(kg) | 11000 | 14000 | 20000 | 23000 | 25000 |
| Dimensions(L*W*H mm) | 12500*2500*1800 | 12800*2900*2000 | 13100*3260*2150 | 13100*3460*2300 | 13100*3700*2500 |
