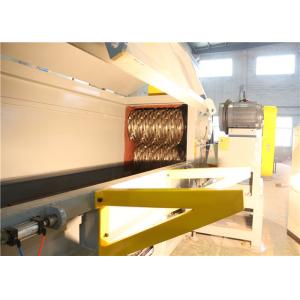

Hydraulic System Horizontal Shredder 13100 * 3460 * 2300mm For Large Diameter PVC Pipe

Product Categories
Zhangjiagang City XinBei Machinery Co.,LTD
Contact Now

Hydraulic System Horizontal Shredder 13100 * 3460 * 2300mm For Large Diameter PVC Pipe

  • 1
  • 2

Brand Name : Xinbei Machinery

Model Number : XB-W series

Certification : CE, ISO9001, TUV, SGS

Place of Origin : CHINA

MOQ : 1

Price : Negotiation

Supply Ability : 50 sets per month

Delivery Time : 30-45 days

Packaging Details : Packed by plastic film or according to customer's needs.

Name : PVC pipe Horizontal Shredder

Shaft diameter(mm) : 650*2

Capacity(kg/h) : 1500

Host weight(kg) : 23000

Warranty : 12 months

Motor power(kw) : 55+75

Contact Now

Hydraulic system double / four shaft Horizontal Shredder for large diameter PVC pipe

Usage:

1. Large diameter PE,PVC pipe

2. Big size PP,PC board

Features:

1. Horizontal shredder is used for shredding large size materials, size could be 250mm-1600mm in diameter while length could be 3m-9m.

2. Adopt self-designed and advanced double shaft driving system, two shafts keep synchronous rotating. Shredding capacity and efficiency improve a great deal compared with singe shaft shredder.

3. Bulit-in hydraulic system keep pushing material toward shafts, in accordance with chamber balance system and high accuracy system, enable stable shredding and reduce vibration and noise.

4. Electrical system, based on easy operation principle, is equipped with one button start, emergency stop, overload protection and other functions to make sure machine get stable working and efficiency.

Our shredder has the main advantage of energy saving, and the system is controlled by center control system.

Model XB-W600 XB-W800 XB-W1000 XB-W1200 XB-W1600
Shaft diameter(mm) 350*2 450*2 550*2 650*2 430*4
Moving knife qty.(pcs) 63 108 132 195 400
Max. Capacity(kg/h) 800 1000 1200 1500 1800
Motor power(kw) 30+37 37+45 45+55 55+75 75+90
Chamber size(L*W mm) 6200*670 6200*870 6200*1100 6200*1300 6200*1700
Host weight(kg) 11000 14000 20000 23000 25000
Dimensions(L*W*H mm) 12500*2500*1800 12800*2900*2000 13100*3260*2150 13100*3460*2300

13100*3700*2500
