PVC Pipe Horizontal Shredder Chamber Balance System Large Capacity 1500 Kg / H

Product Categories
Zhangjiagang City XinBei Machinery Co.,LTD
Contact Now

PVC Pipe Horizontal Shredder Chamber Balance System Large Capacity 1500 Kg / H

  • 1
  • 2

Brand Name : Xinbei Machinery

Model Number : XB-W series

Certification : CE, ISO9001, TUV, SGS

Place of Origin : CHINA

MOQ : 1

Price : Negotiation

Supply Ability : 50 sets per month

Delivery Time : 30-45 days

Packaging Details : Packed by plastic film or according to customer's needs.

Name : PVC pipe Horizontal Shredder

Shaft diameter(mm) : 650*2

Capacity(kg/h) : 1500

Host weight(kg) : 23000

Warranty : 12 months

Motor power(kw) : 55+75

Contact Now

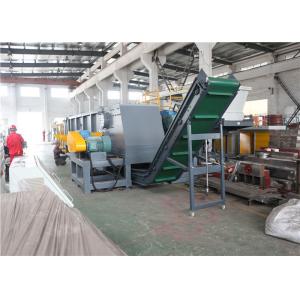

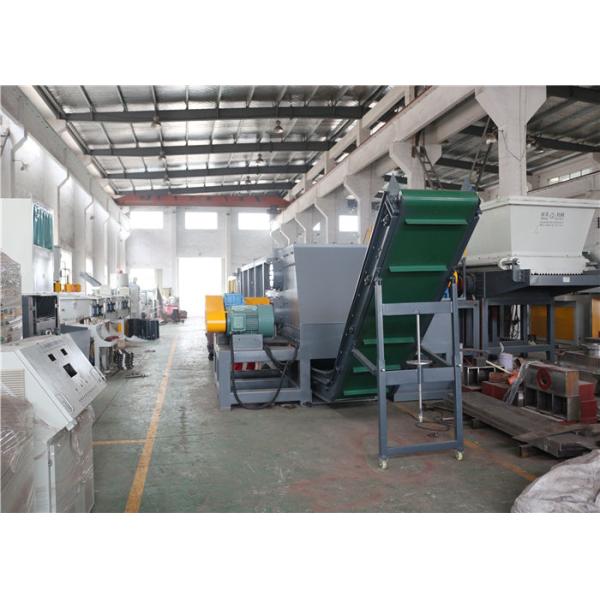

Large capacity Horizontal Shredder for large diameter PVC pipe with chamber balance system

Our shredder is able to shred the PE, PP, PVC pipe with dia.1200mm, the length of 3-6m pipe can be shredded directly without cutting, and the rotary speed is slow and stable. Variety of pipes is put into the flat feeding tank, and the tanks closed automatically, and push the pipe by hydraulic into the center axis for shredding. The material after crushing is transported by conveyor belt for secondary crushing in order to get the requested granule.

Our shredder has the main advantage of energy saving, and the system is controlled by center control system.

Model XB-W600 XB-W800 XB-W1000 XB-W1200 XB-W1600
Shaft diameter(mm) 350*2 450*2 550*2 650*2 430*4
Moving knife qty.(pcs) 63 108 132 195 400
Max. Capacity(kg/h) 800 1000 1200 1500 1800
Motor power(kw) 30+37 37+45 45+55 55+75 75+90
Chamber size(L*W mm) 6200*670 6200*870 6200*1100 6200*1300 6200*1700
Host weight(kg) 11000 14000 20000 23000 25000
Dimensions(L*W*H mm) 12500*2500*1800 12800*2900*2000 13100*3260*2150 13100*3460*2300

13100*3700*2500
